Indoor COB P1.86 Die-Casting Aluminum Cabinet FHD LED Display 10000:1 Contrast Ratio 3840Hz
Indoor COB P1.86 LED Display Specifications:
| Pixel Pitch | P1.25 | P1.53mm | P1.86mm |
| Pixel Density | 640,000 px/㎡ | 422,753 px/㎡ | 288,906 px/㎡ |
| LED Chip | Flip Chip |
| Module Size (W*H) | 320*160mm |
| Module Resolution | 256*128 dots | 208*104 dots | 172*86 dots |
| Surface Treatment | Matt COB |
| Surface Hardness | 4H |
| Panel Size (W*H*D) | 640mm*480mm*59mm |
| Panel Weight | 7.5 kg / panel |
Panel Resolution
(dots) | 512*384 | 416*312 | 344*258 |
| Material | Die-casting Aluminium |
| Circuit Design | Common Anode Circuit |
| Flash Correction Storage | Applicable |
| Brightness | Standard 600nits |
| Refresh Rate | 3840Hz |
| Contrast Ratio | 10000:1 (Condition without lighting) |
| Color Temperature | 9300K (Standard) |
| Viewing Angle | H160°, V160° |
| Input Voltage | AC 100~240V 50/60Hz |
Max. Power Consumption
(White Balance 600nits) | 135 w/panel | 88 w/panel | 88 w/panel |
| Maintenance Way | Front Service |
| IP level of PCB serface | IP54 (Washable by clean water) |
| Lifetime at 50% Brightness | 100,000 hours |
| Operating Temperature / Humidity | -10°C-+40°C/10%RH-90%RH |
| Stroage Temperature / Humidity | -20°C-+60°C/10%RH-90%RH |
| Certificate | CCC, EMC CLASS-A, ROHS, CQC |
| Application | Indoor |
| Warranty | 3 years |
Key Features of Indoor COB P1.86 320×160mm Module:
1. Pixel pitch: 1.86mm
2. Module size: 320×160mm
3. Module Resolution:172*86 dots
4. Panel size: 640×480×59mm(Customized)
5. Panel Resolution:344*258
6. Panel weight: 7.5kg/panel
7. Surface Treatment: COB
8. Surface Hardness: 4H
9. Application: Indoor
10. IP : 54
11. Refresh Rate: 3840Hz
12. Brightness: 600nit
13. Certificate: CCC, EMC CLASS-A, ROHS, CQC
14. Warranty: 3 years
Key Advantages of Indoor COB P1.86 FHD LED Display:
Our 320*160mm COB cabinets are revolutionizing displays, they're the perfect SMD replacement that actually saves money while delivering more:
1. Tough anti-collision design;
2. Crystal-clear 4K/8K resolution
3. Fits commercial TVs & luxury home video walls;
4. Fully customizable sizes/shapes;
5. Our COB cabinets are available at a competitive rate similar to SMD.

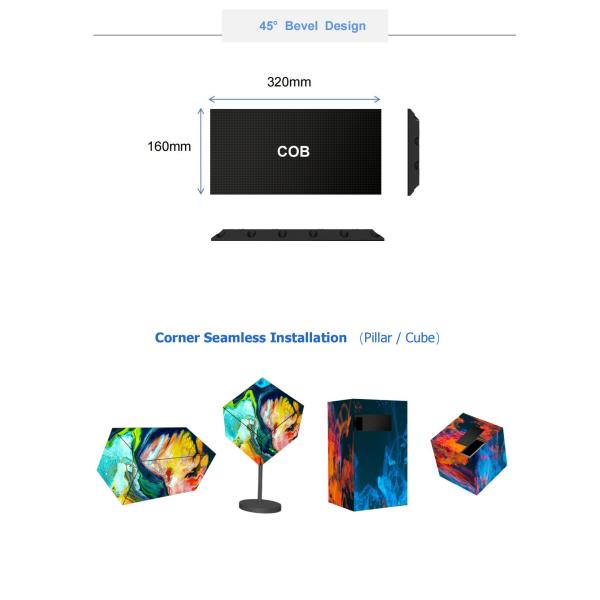

COB Cabinet Dimensions:
Corner Seamless Installation:
The 45° bevel design enables seamless pillar and cube formations for creative LED video walls.
